LFP72-100 76.8V 100Ah Lithium Iron Phosphate LiFePO4 Battery

Product Categories

HEFEI ECOLITE ENERGY CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LFP72100 768V 100Ah Lithium Iron Phosphate LiFePO4 Battery
Brand: Ecolite/OEM/ODM
Price: 1 USD

Brand Name : Ecolite/OEM/ODM

Place of Origin : China

MOQ : 5000

Price : Inquiry

Payment Terms : L/C, T/T

Supply Ability : 5000 Units per month

Delivery Time : 1-2 months

Packaging Details : Carton Pallet Container

Nominal Voltage : 76.8V

Rated Capacity : 100Ah

Energy : 7680Wh

Resistance : ≤35mΩ

Efficiency : ≥0.98

Cycle Life : >4000cycles @1C,80% DOD

Self Discharge : <5% per Month

Max. Modules in Series/Parallel : 24S/1P

Contact Now

LFP12-300 12.8V 304Ah Lithium lron Phosphate (LiFePO4)

Specifications:

Electrical Parameters		Mechanical Parameters

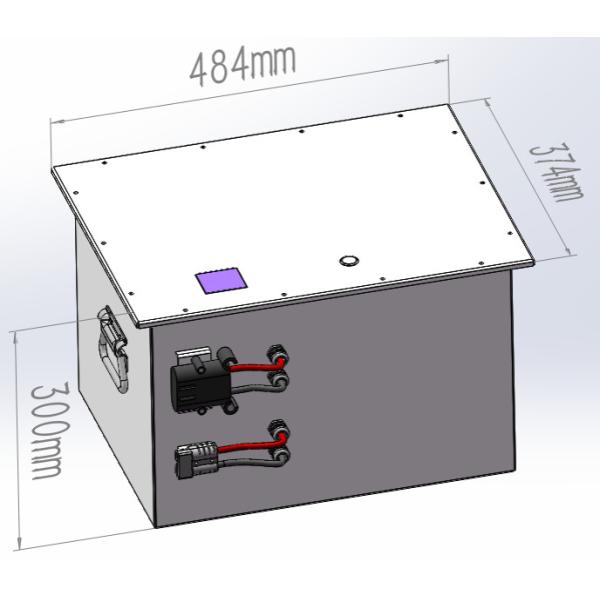

Nominal Voltage	76.8V	Dimension(L×W×H)	484x374x300mm
Rated Capacity	100Ah	Dimension(L×W×H)	19.06x14.72x11.81''
Energy	7680Wh	Weight	72kg
Resistance	≤35mΩ	Terminal Type	REMA,Anderson
Efficiency	≥0.98	Battery Housing	Cold rolled steel gold
Cycle Life	>4000cycles @1C,80% DOD	Housing Protection	IP54
Self Discharge	<5% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	24S/1P	Communication	4G+GPS

Discharge Parameters		Charge Parameters
Continuous Discharge Current	100A	Charge Method	CC-CV
Pulse Discharge Current	200A(<1S)	Charge Voltage	85.2-87.6V
Recommended Volt. Disconnect	60V	Recommended Float Voltage	81~82.8V
BMS Discharge Cut-off Voltage	52.8V	Recommended Charge Current	50A
Reconnect Voltage	64.8V	Maximum Charge Current	100A
Short Circuit Protection	200-600us	BMS Charge Cut-off Valtage	88.8V

LFP72-100 76.8V 100Ah Lithium Iron Phosphate LiFePO4 Battery
